TURKEY AND MIDDLE EAST

SALES, MAINTENANCE, INSTALLATION AND ASSEMBLY COOPERATION

SHANDONG DONGRUN INSTRUMENT SCIENCE AND TECHNOLOCY & AKTEL MÜHENDİSLİK




All devices are Turkish interface, installation, installation, commissioning, maintenance and online system connections

It is done by AKTEL engineering.

Continuous technical support is provided.

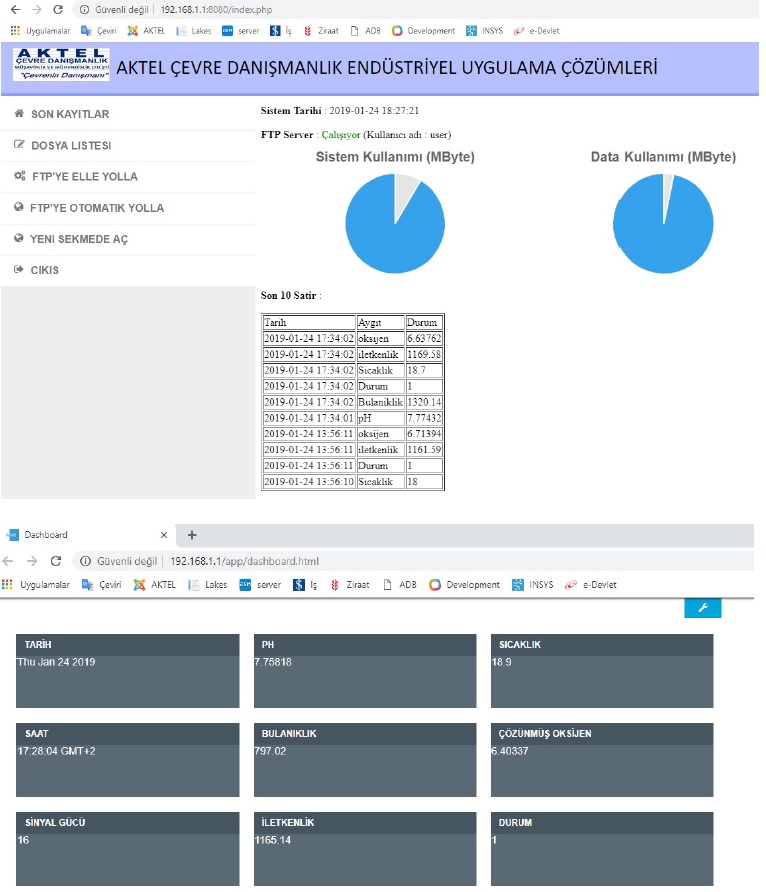

Online Screen Click

DR5000 Multi Parameter Water Analyzer

 MODEL: DR5000

  • DR-5000 multi-parameter water analyzer can detect five parameters in one controller, with high intelligence and flexibility, widely used in water supply, municipal, farming and other industries.

    Available Sensor: Temperature, PH/ORP, Dissolved Oxygen, Conductivity, Turbidity



    Key Features

  • MODBUS RS485/RS232 digital output

  • Double 4~20mA analog output.

  • 3 relay.

  • No reagent consumption.

  • Power supply: AC220V, 20W.

  • USB interface.

  • Data logger.

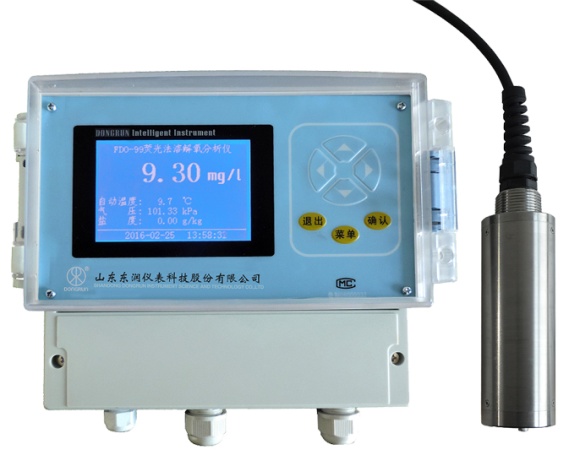

  FDO-99 Fluorescence Method Dissolved Oxygen Analyzer

 MODEL: FDO-99

FDO-99 fluorescence method dissolved oxygen analyzer, adopts the fluorescence quenching principle and accurate phase detection technology and innovative packaging process, which makes its reliability and service life leading the rival product greatly. Its unique characteristics of long-term low drift and maintenance-free make the product surpass and take the place of traditional electrochemical electrode completely.



Key Features

  • Measuring Range: 0-20mg/L, 0-20PPM, Air saturation: 0-120%.

  • Resolution: 0.01mg/L.

  • Measuring Accuracy: ±0.2mg/L.

  • Not affected by the ion (H2S, CO2, NH3, SO4 2-, Cl-, Cl2, etc).

  • No need to replace solid electrode or membrane / electrolyte.

  • Wall mounted

  • Two point calibration in the factory, no need calibration from user.

  • 4~20mA analog output, MODBUS RS485/RS232 digital output.

  • Optional 4 alarms relay, 1 cleaning relay

  • Data logger.

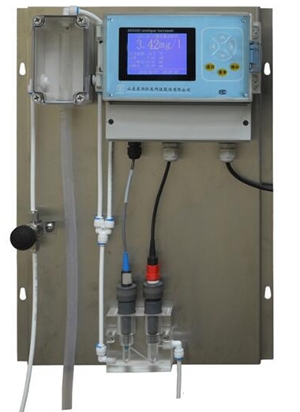

DCRL-99 Online Free Chlorine Analyzer

MODEL :DCRL-99

DRCL-99 online free chlorine analyzer consists of probe, controller, constant flow device and flow cell, can measure free chlorine, PH, temperature, also used to detect chlorine dioxide, widely used in electricity, water, medicine, chemical industry and so on.

Key Feature

  • Measuring Range: 0-20mg/L.

    (0.01-0.5, 0.02-2, 0.01-5, 0.1-10, 0.5-50, 1-100mg/L)

  • Resolution: 0.01mg/L, 0.01Ph, 0.1°C.

  • Measuring Accuracy: 0.5%FS

  • No need replace the reagent, no waste out.

  • With PH & temperature compensation.

  • With constant flow device.

  • Double 4~20mA analog output. Optional MODBUS RS485 digital output

  • 3 Relay


Online pH/ORP Analyzer

PHS-8 online pH/ORP Analyzer is the intelligent industrial online analytical instrument. It can be equipped with a variety of pH/ORP electrode.

To detect the pH, ORP value of the solution in chemical, petroleum, rubber, paper, tobacco, alcohol, sugar, food, mining, smelting, iron and steel, power generation, pharmaceuticals, water treatment and other industries.

  • Measuring Range: pH 0~14, ORP -1999~+1999mV.

  • Resolution: 0.01pH (±0.1mV)

  • Measuring Accuracy: ±0.05pH (±2mV)

  • Temperature compensation: -10~100°C.

  • Power supply: AC220V, 50Hz, 5VA.

  • 4~20mA analog output, MODBUS RS485/RS232 digital output.

  • Optional 4 alarms relay, 1 cleaning relay

  • Automatically identify and calibrate the PH standard solution. Automatic temperature compensation

  • 16 bit high accuracy A/D and low power consumption microprocessor technology

  • LCD screen displays pH/ORP, temperature, time

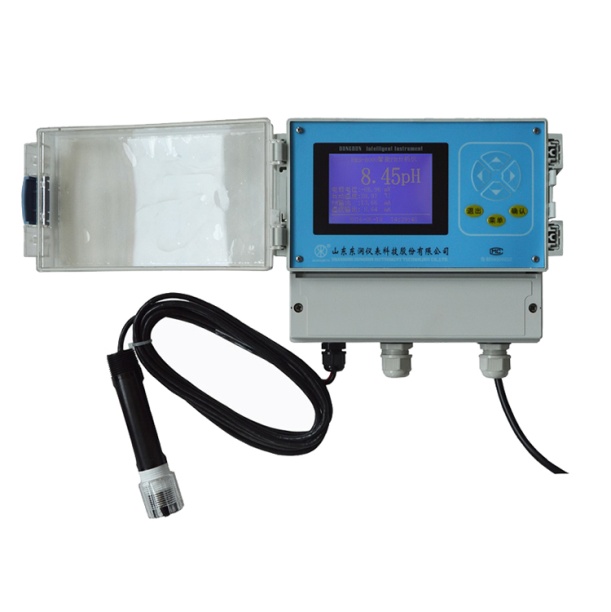

PHS-8B MODEL

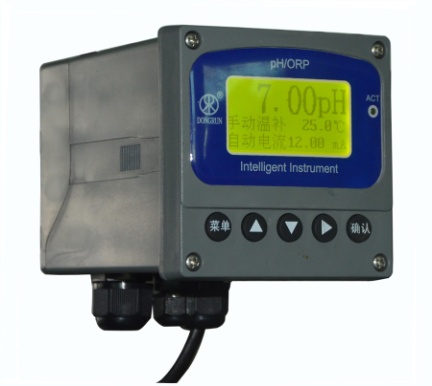

PHS-8E MODEL

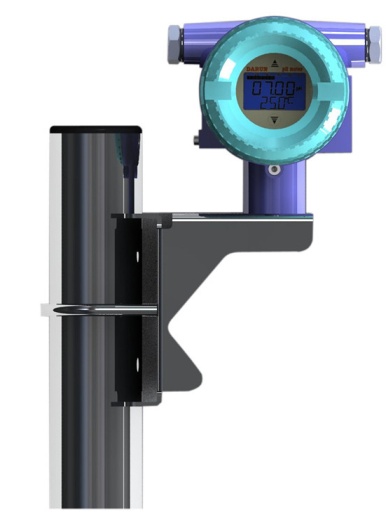

PHD-99S MODEL


Online Conductivity Analyzer

DDG-99 on line Conductivity analyzer consists of controller and conductivity sensor, widely used in many industrial process water conductivity detection with high accuracy and precision of measurement, response speed fast, small size, easy installation and maintenance, etc.

Key Features

  • Measuring Range: 0-0.2-2-20μs/cm 0-2-20-200μs/cm 0-20-200-2000μs/cm autorange
  • Resolution: 0.001μs/cm, 0.1°C.Measuring Accuracy: ±1%F.S, ±0.2°C.
  • Temperature compensation: 0~120°C.
  • Power supply: AC220V, 50Hz.
  • 4~20mA analog output, MODBUS RS485/RS232 digital output.
  • Optional 4 alarms relay, 1 cleaning relay
  • Automatically identify and calibrate the PH standard solution. Automatic temperature compensation
  • 16 bit high accuracy A/D and low power consumption microprocessor technology
  • LCD screen displays Conductivity, temperature, time



DMD-99 Conductivity Analyzer is an integrated two-wire instrument, used to detect the conductivity of drinking water, food and beverage, chemical, boiler water, pharmaceutical, reverse osmosis, pure water and other industries, economical and practical, easy to install and use.

  • Measuring Range: 0-0.1-20μs/cm 0-1-200μs/cm 0-10-2000μs/cm 0-100-20000μs/cm
  • Measuring Accuracy: ±2%F.S
  • Power supply: 24V DC (22-32V).
  • Protection: IP65Analog output: 4-20mA
  • Economical and practical, easy operation, reliable performance
  • Can be integrated with sensor and sheath into a whole body, compact

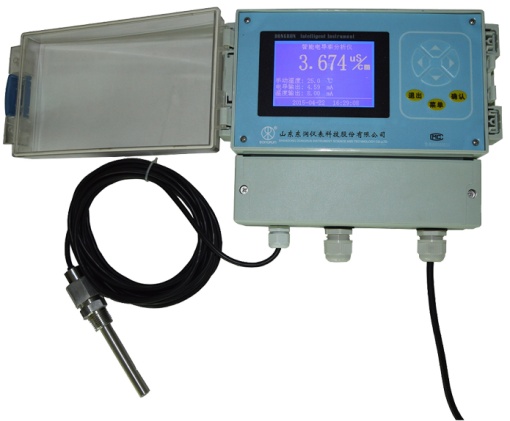

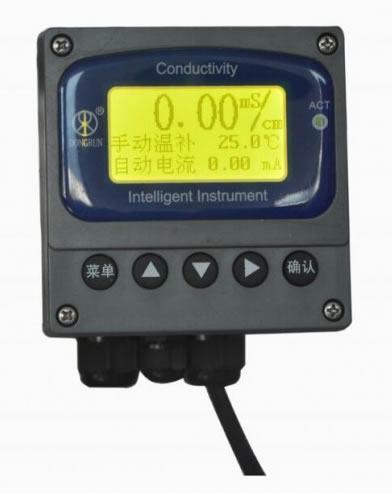

Wall mounted DDG-99B Panel mounted DDG-99E Explosion proof DMD-99Two-wire

MLSS-99 Online Suspended Solids Concentration/ Sludge Analyzer

MODEL: MLSS-99

MLSS-99 Online Suspended Solids Concentration/ Sludge Analyzer is applied in waste water treatment process and biochemical treatment to detect the concentration of suspended solids and sludge.

  • Measuring Range: 0-10g/L, 0-50g/L
  • Measuring Accuracy: <5%
  • Single beam light source, 90° and 140° scattered light detection.
  • With automatic cleaning wiper, self cleaning realized.
  • Water color compensation
  • Auto range
  • 4~20mA analog output, MODBUS RS485/RS232 digital output.

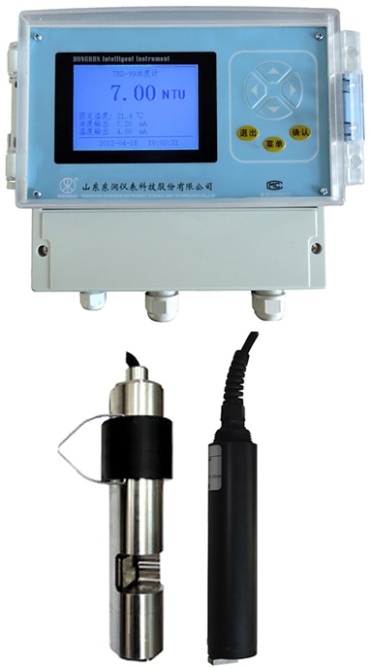

TBD-99 Online Turbidity Analyzer

TBD-99 Turbidity analyzer adopts standard infrared light scattering detection. Mainly used in water plant, industrial process, sewage treatment and other industries.


Key Features

  • Measuring range: 0-100-1000-4000
  • auto range 0-100-500NTU auto range
  • Measuring Accuracy: 0.01NTU (0-20NTU) 0.1NTU (20-500NTU)
  • Standard 90° infrared scattering light 860nm.
  • Nearly no need maintenance.
  • With fault self diagnosis.
  • MODBUS RS485/RS232 digital output,
  • Double 4~20mA analog output.
  • Power supply: AC220V, 10W.

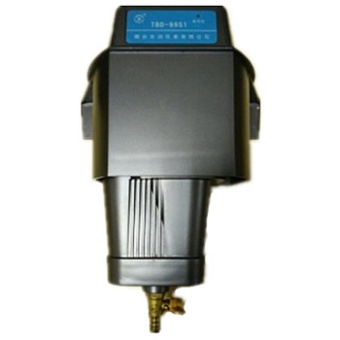

TBD-99 MODELİ

BYPASS AKIŞ TÜRÜ MODELİ
